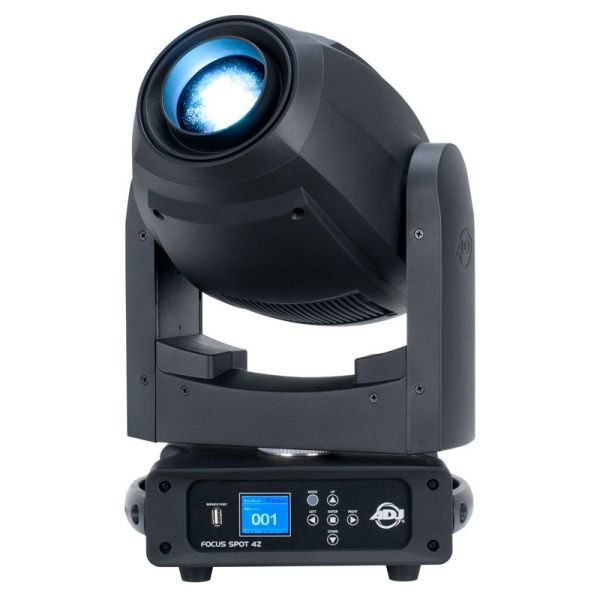

ADj Focus Spot 4Z Moving Head

The Focus Spot 4Z is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus and zoom (11 ~ 22-degree zoom). Its designed for temporary live events and fixed installations in nightclub, stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS, 8 vibrant colors plus white, and 2 prism wheels (one 5-facet linear and one 6-facet circular).

The Focus Spot 4Z has locking power In/Out connections to daisy chain the power, as well as 5-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fin pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 4Z offers a robust light output in a light weight, compact foot print (18-inch high and one 23 pounds).

The Focus Spot 4Z fits in the ADJ DRC MH road case.

Specifications

• Light Source:
• 200W Cool White LED Engine (50,000 hr.)
• Features:
• Motorized Focus
• Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom
• 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• 2 cooling fans
• Color Wheel:
• 8 dichroic colors + white
• GOBO Wheel:
• 6 aluminum GOBOs + open
• All GOBOs removable & rotatable
• GOBO Shake Effect
• GOBO size: 22.5mm (outer); 19mm (viewable); 0.5-2mm (thickness)
• Prism Wheel:
• Prism Wheel 1: Rotatable 5-facet Linear
• Prism Wheel 2: Rotatable 6-facet Circular
• Prism Indexing
• Control:
• 3 DMX Channel Modes: 16/18/22 Channels
• Color LCD display with 6-button function menu
• Data In/Out: 5-pin DMX
• Power In/Out: Locking power In/Out connections (Daisy chain 4 units @ 120V; 10 units @ 240V)
• Control Mode: DMX512 or internal programs
• 6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• With Wired Digital Communication Network
• RDM (Remote Device Management)
• Pan/Tilt:
• Pan: 540 & 630 degrees
• Tilt: 270 degrees
• Dimensions & Weight:
• Dimension: 7.15 (L)” x 10.97” (W) x 18” (H) / 181.5 x 278.6 x 457.4mm
• Weight: 23 lbs. / 10 kg.
• What’s Included:
• Omega Bracket
• 6 ft/3M Locking power to Edison cable
• Safety Cable
• Rating/Approvals:
• cETLus approved (Control #4010765)
