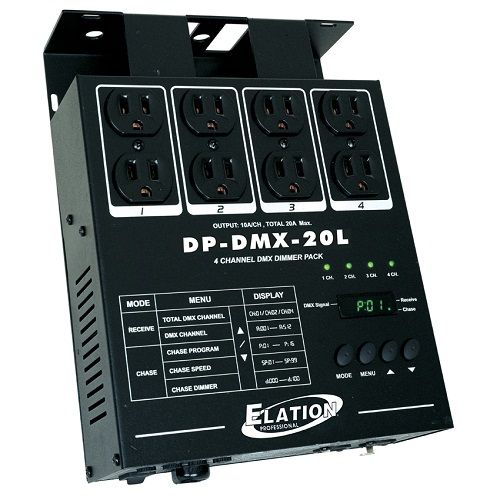

Elation DP-DMX20L

The Elation DP-DMX20L is a 4-channel portable DMX dimmer/switch pack. Each channel can individually be set to dim or switch and the pack can function as a one, two or four channel device. Using the packs digital display, the pack is quick and easy to set up. There are dual Edison sockets supplied so more than one par or effect can be connected to each channel. 16 built in chase sequences, with speed and intensity control, are available for your convenience. Four external channel fuses allow for quick and easy field serviceability.

Features

• 4 channel DMX Dimmer Pack
• Digital display- used to set starting DMX address channels and set all other menu options
• Selectable 1, 2, or 4 channel operation
• Adjustable master dim level
• Two three prong Edison sockets per channel
• 3 pin XLR DMX Input & Output
• Four LED’s display channel activity
• External channel fuses for quick and easy replacement
• Sleek reversible mounting panel on the rear
• Zero crossing circuitry for protection of transformer loads when switching
• 16 built in Chases when in Chase mode with adjustable speed setting
• Use in conjunction with Elation; DMX Operator Pro, Stage Setter-8, Scene
• Reversible mounting brackets
• Setter, Scene Setter-48, Stage Desk-16 or any universal DMX controller
• Power Input: 120V ~ 60Hz
• Maximum Load: 10A per channel / 20A tota
