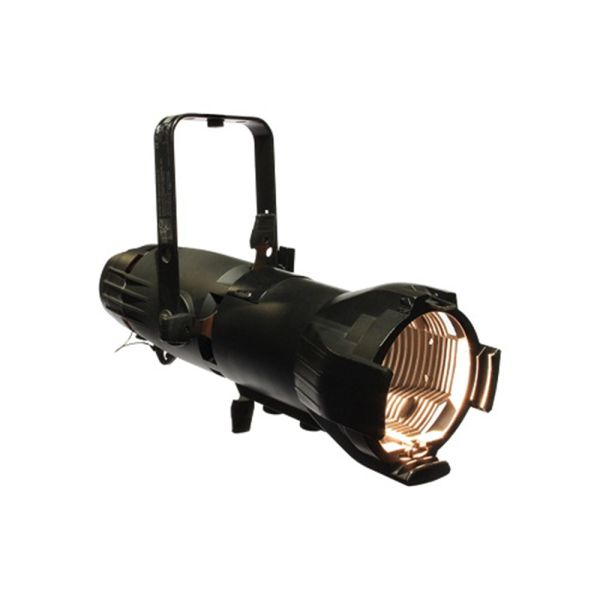

ETC Source Four Jr. 50 Degree

Features

PHYSICAL

• Rugged die cast aluminum construction

• 20 gauge stainless steel shutters in a bi-plane assembly

• High impact, thermally insulated knobs and shutter handles

• Two accessory slots, and a top mounted, gel frame retainer

• Steel yoke with two mounting positions

• Positive locking, hand-operated yoke clutch

• Slot for M-size Gobos

• Slot with sliding cover for motorized pattern devices

ELECTRICAL

• 115-240V, 50/60Hz

• High temperature 3–conductor 36” leads in a glass fiber outer sleeve

• 575W Maximum

• Integral die cast aluminum heat sink lamp base

OPTICAL

• Optimized optical system for efficient photometric performance

• Projector-quality, high contrast aspheric lens

• Faceted borosilicate reflector with dichroic cold mirror coating removes greater than 90% infrared radiation (heat)

• Tool free, positive locking X, Y and Z lamp centering adjustments, unaffected by relamping

• Beam edge continually adjustable hard-to-soft
