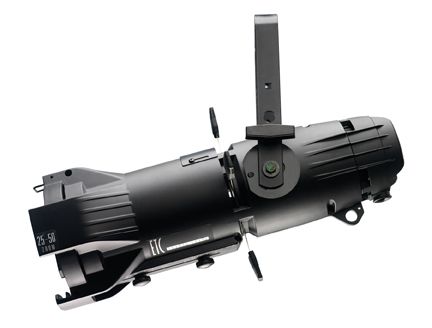

ETC Source Four Jr. Zoom 25-50 degree

Features

PHYSICAL

• Rugged die cast aluminum construction

• 20 gauge stainless steel shutters in a bi-plane assembly

• High impact, thermally insulated knobs and shutter handles

• Two accessory slots, and a top mounted, gel frame retainer

• Steel yoke with two mounting positions

• Positive locking, hand-operated yoke clutch

• Slot for glass or stainless steel gobos

• Slot with sliding cover for motorized pattern devices or

• optional iris

• UL and cUL Listed

ELECTRICAL

• 115-240V, 50/60Hz

• High temperature 3-conductor 36” leads in a glass fiber outer sleeve

• Supports ETC Dimmer Doubling™ technology

LAMP

• 575W maximum

• Patented filament geometry provides extremely efficient light collection and transmission

• Integral die cast aluminum heat sink lamp base

OPTICAL

• Optimized optical system for efficient photometric

• performance

• Two bi-convex lenses

• removes greater than 90% infrared radiation (heat) and

• reflects greater than 95% of visible light

• Tool free, positive locking X, Y and Z lamp centering

• adjustments, unaffected by relamping

• Beam edge continually adjustable hard-to-soft
