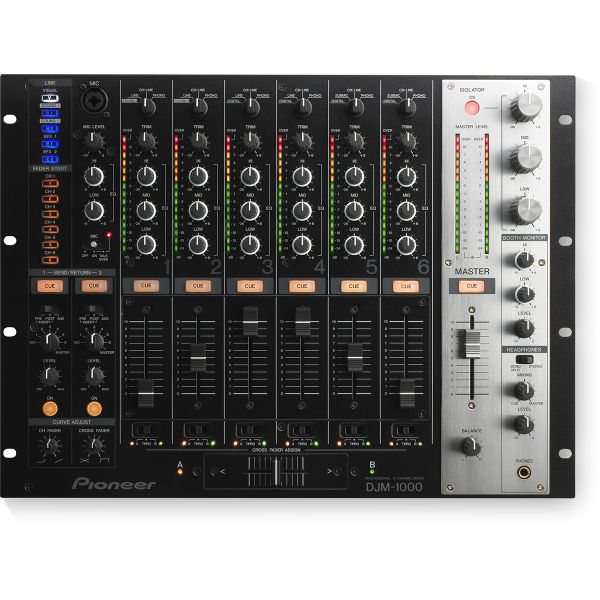

Pioneer DJM-1000

A built-in 3-band isolator is capable of producing level control of -infinity dB to +6 dB on each band. A 2-system, 3-type SEND/RETURN (PRE INSERT/POST INSERT/AUX) is provided to allow multiple connection variations with external devices, such as effectors and samplers, thus widening the range of DJ play potential. The fader curve adjust allows adjustment not only of the cross fader curve (as on former models), but also of the channel fader curve. Both faders functions can be adjusted within 17 steps so that DJs can customize the settings to their own preferred response. The main fader volume control knob can be changed to a rotary knob for delicate sound volume control when mixing. An optional part (DJC-1000RV) is required to make this change, which can be completed in any of Pioneer's authorized service centers.

Using digital input connectors supporting multiple sampling rates (44.1/48/96 kHz), a system can be built in which no sound quality degradation occurs when connecting to external digital devices. A DIGITAL OUT connector with a 24-bit/96 kHz sampling rate is provided, facilitating recording at studios and other situations demanding high sound quality. Supports only linear PCM.

MIDI signals can be output to allow MIDI control of external devices. Multiple functions can be performed by using digital link cables to connect other PIONEER DJ CD players, DJ effectors and AV mixers. When connected to a visual mixer using the MIDI output, you can control the crossfade of the video mixer simply by cross fading the audio on the DJM-1000.

Features

• 6-channel digital DJ mixer
• 19" rackmount design can be used tabletop style as well
• Incredible sound quality
• 3-band isolator
• Variety of send/return options for effects, processors and more
• Fader curve adjust for crossfader AND channel faders
• Digital I/O supports multiple sample rates up to 24-bit/96kHz
• MIDI output for operation of external equipment
• Special digital link function for connection to compatible CD players, effects and A/V components
• Fader start available on ALL 6 channels
• Built-in 3-band equalizer on each channel allows level control within the range of -26 dB to +6 dB at each band
• 2-band booth EQ for control of booth monitor response, thus facilitating booth monitoring by the DJ
• Built-in crossfader assign function enables more flexible assigning of each channel's input to the cross fader
