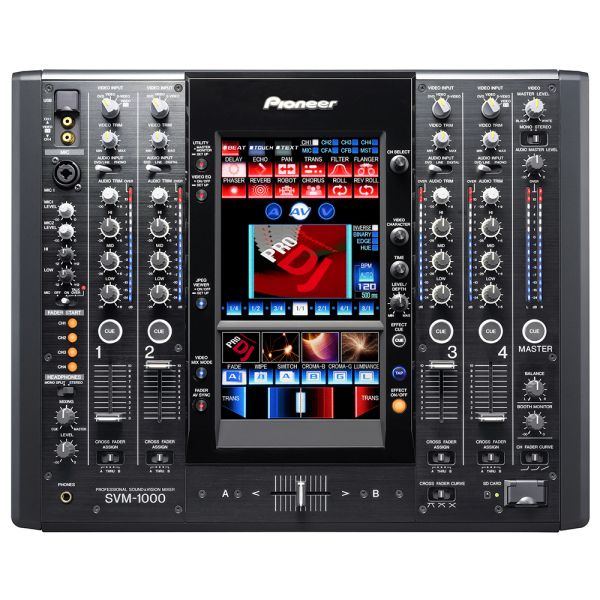

Pioneer SVM-1000

DJs can synchronize audio and video with up to four sources simultaneously. Each of the four channels features independent fading and equalization for traditional mixing techniques. The mixer is also capable of sound-only or visual-only control for creative mixing according to the DJ/VJ style. For enhanced visuals of any mix, the cross fader is capable of various video effects such as FADE, WIPE and CHROMAKEY.

Highlights

Audio Video Effect Function – enables the user to fully synchronize audio and video effects utilizing a built-in 11-inch touch-panel LCD display. With up to 30 built-in audio and video effects, users have the ability to quickly create exciting visual treatments orchestrated to music. When video isn’t available from a source, such as a CD, the DJ can still create a visual performance through pre-loaded graphics and images accessed from an animated on-screen icon for quick selection.

• AV Beat Effect: The mixer automatically detects the tempo of the music and synchs it with the video content. Twelve beat effects are available including Delay, Echo, Pan, Transformer, Filter, Flanger, Phaser, Reverb, Robot, Chorus, Roll and Reverse Roll which can also be combined with other visual effects such as Inverse, Edge and Hue for numerous arrangements.
• AV Touch Effect: Taking advantage of the large touch-screen display, users can quickly access 12 touch effect patterns including Ripple, Lens, Spot, Radiation, Cube, Block, Kaleidoscope, Twist, Zoom, Drop, Blur and Distortion. Each effect contains four parameters to create different variations on the screen.
• Text Effect: Custom text messages can also be displayed to the tempo of the music in various beat-linked expressions. Six text patterns are available including Random, Zoom, Block, Rotation, Crush and Slide which can also be inputted through its built-in USB connection.

JPEG Viewer Function

Users are able to incorporate their own images and photos from an external memory device for use in their performance through a SD slot and USB connection. Its “Still Image Sampler” further enhances visuals by mixing images, such as logos of DJs, events or sponsors with videos or other still images with the ability to loop and play them as a slide show.

Audio and Video Quality

• Audio: The mixer employs 96 kHz/24-bit digital sampling and a 32-bit Digital Signal Processor (DSP) for the highest quality audio. The SVM-1000 integrates various features to maximize audio quality: high rigidity chassis for minimizing unnecessary vibration, dual-shield structure for eliminating digital noise and high performance/low noise power supply for clean and powerful sound.
• Video: The video signal input through the Analog to Digital Converter is image processed at 600MHz/32-bit/4800MIPS (Million Instructions per Second) to maintain high dynamic range and minimized noise resulting in accurate and clear visuals.

Features

• 11-inch LCD touch-panel display
• Multiple channel video blending technology
• Audio video effect function
• Video Trim: Enables adjustment of brightness for each input video channel.
• Video EQ: Assignment of video parameters such as RGB, contrast, hue or saturation allows equalization and synchronization of audio and video.
• Fader Start: Allows the cross fader to start other Pioneer players.
• Fully Assignable MIDI: Control of external MIDI equipment such as effectors or DJ/VJ computer software
• Video Monitor Select: One touch on-screen video selection.
