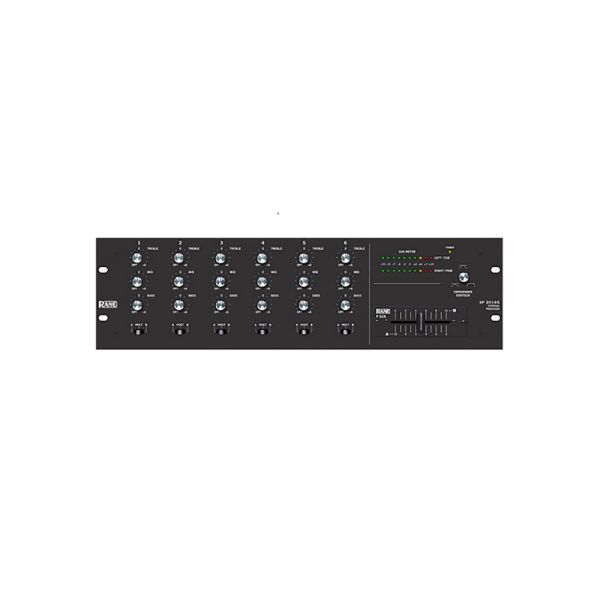

Rane XP2016

The treble, mid and bass EQ on the XP-2016 operate above 4kHz, between 300Hz and 4kHz and below 300Hz respectively, each with a range of +6dB to full-kill.  The crossfader assign switch can send the channel to either A or B on the crossfader or POST, which sends the signal directly to the output.

The XP-2016 crossfader uses Rane’s proprietary ‘active crossfader’ design and has a dedicated ‘contour’ control which allows you to select the curve type.  There is also two 10-segment meters, one for cue level (PFL) and one for peak program metering (PGM).

The Rane XP-2016 connects to the MP-2016 via the included 26-pin ribbon cable, through with it draws all its I/O.

Features

• Six channels
• Three-band EQ
• Crossfader assign switch
• Rane crossfader
• Crossfader ‘contour’ control
• 10-segment meter for PFL
• 10-segment meter for PGM
• Connects to MP-2016 mixer via 26-pin ribbon cable (included)
